Name: Reasonable Structure PSA Nitrogen Generator For Heat Treatment / Food Industry
Brand: JoShining Energy & Technology Co.,Ltd
SKU: PN-70-595
Price: Negotiable USD
Availability: InStock

Home Products PSA Nitrogen Generator

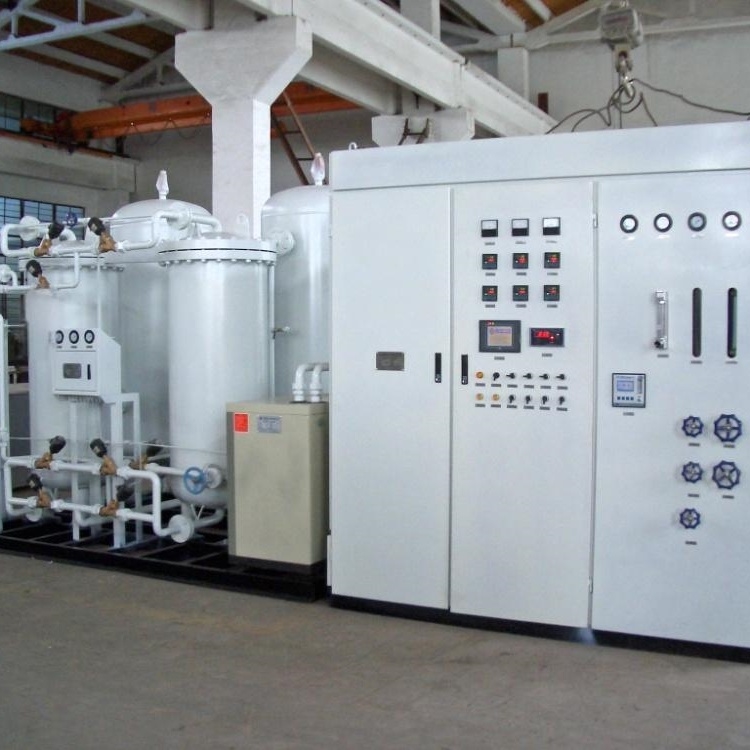

Reasonable Structure PSA Nitrogen Generator For Heat Treatment / Food Industry

Product Details:

Place of Origin:	Suzhou
Brand Name:	SINCE GAS
Certification:	CE,,BVC,ABS,CCS,LR,DNV,LR,ASME
Model Number:	PN-70-595

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiate
Packaging Details:	exporting standard packing
Delivery Time:	within 2-3 months
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	80 sets per month

Contact Now

Detailed Product Description

Name:	PSA Nitrogen Generator	Certificates:	CE,ABS,ASME,BV
Purity:	99.99%	Application:	Heat Treatment / Food Industry
Field:	Stainless Steel Tube, Plate Cutting	Color:	Grey/white
Highlight:	sa nitrogen plant , psa nitrogen generation system , Reasonable Structure PSA Nitrogen Generator

Reasonable Structure PSA Nitrogen Generator For Heat Treatment / Food Industry

PSA Nitrogen Generator Feature

· Specific pressure protection measure of molecular sieve with long life

· Low energy consumption, and High nitrogen purity.

· Compact design with Reasonale internal componets,

· High degree of automation

· Multifunction smart moitoring system,

· Skid mounted design, easy installation and repid debugging.

· Optional Oxgen flow, remote moitoring system etc.

PSA Nitrogen Generator Technical characteristics

1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out , it can not cause of molecular sieve pulverization phenomenon. equipped with the limit settlement alarm system,when it reach the floor level of journey,the equipment will sound and light alarm by itself.
3. Configured DCS remote control system interface,it can monitor the system operate condition through the computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable,it also has various fault alarm.
8.It operates easily, runs stably, and has a high degree of automation, can realize no one operates.

PSA Nitrogen Generator Specifications:

No	Model	Capacity(Nm3/h)	Purity	Power(KW)	Overall size(mm)
1 2 3 4	PN-3-39 PN-5-29 PN-5-295 PN-8-295	3 5 5 8	99.9% 99.5% 99% 95%	0.5	180014001500
5 6 7 8	PN-5-49 PN-8-39 PN-12-295 PN-15-29	5 8 12 15	99.99% 99.9% 99.5% 99%	0.5	180014001800
9 10 11 12	PN-10-49 PN-15-39 PN-25-295 PN-30-39	10 15 25 30	99.99% 99.9% 99.5% 99%	0.5	200017002250
13 14 15 16	PN-15-49 PN-22-39 PN-35-295 PN-45-29	15 22 35 45	99.99% 99.9% 99.5% 99%	0.5	210018002200
17 18 19 20	PN-20-49 PN-30-39 PN-50-295 PN-60-29	20 30 50 60	99.99% 99.9% 99.5% 99%	0.5	220018002200
21 22 23 24	PN-30-49 PN-45-39 PN-75-295 PN-88-29	30 45 75 88	99.99% 99.9% 99.5% 99%	0.5	240019002200
25 26 27 28	PN-40-49 PN-60-39 PN-100-295 PN-120-29	40 60 100 120	99.99% 99.9% 99.5% 99%	0.5	250021002500
29 30 31 32	PN-50-49 PN-70-39 PN-120-295 PN-140-29	50 70 120 140	99.99% 99.9% 99.5% 99%	0.5	260022002850
37	PN-80-49	80	99.99%	0.5
41 42 43 44	PN-100-49 PN-140-39 PN-250-295 PN-290-29	100 140 250 290	99.99% 99.9% 99.5% 99%	0.5	350015002800
...	...	...	...	...	...
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly

Company History

SINCE-GAS devoted to gas field development,who established in 2004, we manufacture PSA nitrogen generators,Membrane nitrogen generators,PSA oxygen generators,PSA hydrogen generator,with other

gas recoverinig,purifier device,

With 1000 sets output,we delivered to our machines to many countries,area, like Signapore,Indonesia,

Thailand,India,Malaysia,Myanmar,Vietnam,South Korea,New Zealand,Russia, Iran,Macedonia,German,USA

etc.

Quality&service are the soul of SINCE,we always striving &focus on innovation !

Provided valuable service&products for gas field,push Industrial civilization progress !
