High Speed Nitrogen Generation Plant , Steel Mobile Nitrogen Gas Generator

High Speed Nitrogen Generation Plant , Steel Mobile Nitrogen Gas Generator

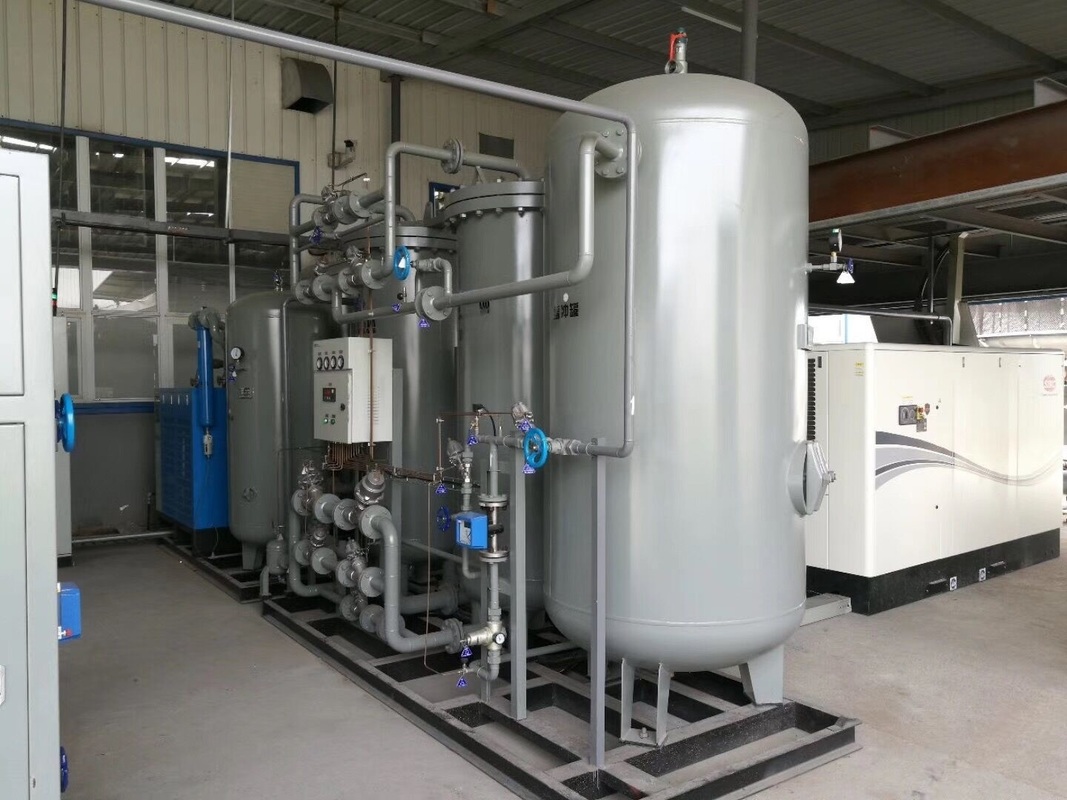

Nitrogen Generation Plant  flaw

(1). air compressing system, this system includes air compressor, air buffer tank, the purpose of this syetem is to compress the normal pressure air to high pressure air.

(2). air purification system, this system includes degreaser, refrigerated(adsorption)dryer,ultrafilter,active carbon filter,the purpose of this system is to remove dust,water and oil in the compressed air to make sure the compressed air will be clean and dry in the following steps.

(3). air buffer tank. This system includes air compressing buffer tank,the purpose of this system is to store the compressed gas to make sure the stable supply of gas for O2/N2 separation system,mainly composed of air tank and valves.

(4). Adsorption separation system,this system includes adsorber tower,Program control valve,controller,analysis meter, also this is the most important system for all the production line, the purpose of this system is to produces N2 through PSA technology,composed of two adsorption towers filled with carbon molecular sieve and automatic control valves

(5). buffering and emptying system,this system includes Nitrogen gas buffer tank,flfter,pressure regulating valve,flow gauge, emptying system.the purpose of this system is to store the finished N2 and regulate the pressure for the request,and change the flow of the N2.

Selective Permeability

Nitrogen membranes separate gases by the principle of selective permeation across the membranes

wall.

For nitrogen polymeric membranes, the rate of permeation of each gas is determined by its solubility

in the nitrogen membrane material, and the rate of diffusion through the molecular free volume in the

nitrogen membrane wall. Gases that exhibit high solubility in the nitrogen membranes, and gases that

are small in molecular size, permeate faster than larger, less soluble gases.

Fast Gases and Slow Gases

"Fast" gases permeate through the nitrogen membrane wall more readily than "slow" gases, thus

separating the original gas mixture into two streams. The purity of the desired streams can be adjusted

by changing the operating conditions.

Specifications:

Technical parameter :

High purity, and the purity of N2 could be regulated between 95% to 99.9% according as

user's need;
.High efficiency, low energy consumption of compressed air;
.Standard models, nitrogen generator could be parallel for additional nitrogen output;
.Low dew point, dew point of product ≤ -40 °C to ensure the quality of welding;
.Available frame, appearance clean and easy cleaning management to meet the high cleanliness

requirement of electronics industry.

During the last 10 years,about 98% old customers firmly choose SINCE

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;

,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

 company who got ,TS (Manufacture License of special equipment)

CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

generator.

Excellent infrastructure set up teamed by experienced and qualified engineers.

Sophisticated and developed R&D wing in assistance for installation and use of plants.

After Sales Service Commitment

Free warranty for the equipments during the promised period

1. The nitrogen generator,1 year warranty, maintenance responding time is less than eight hours.
2. Ancillary equipment ,1 year warranty, maintance responding time is less than 8 hours.
3. Lifelong maintance service in a timely manner, the responding time is less than 8 hours.

4.Provide 24-hour hotline service.
5.Return visit every six months (callback or on the spot).

6. General failure:within 2 hours of repair
7. Serious failure:within 12 hours of repair
8. Supply accessories in a timely manner, the delivery time is generally 1-7 days.

9.Free repair at the expiry time of warranty
