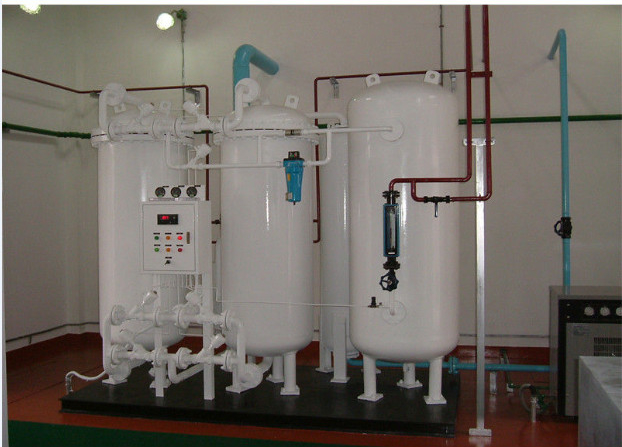

Automatic Nitrogen Generating Equipment / Food Nitrogen Generation Unit
Nitrogen Generating Equipment Principle
When the process adopts lifting air, oxygen and nitrogen have different diffusion rate and
adsorptive capacity to separate oxygen from nitrogen on carbon molecular sieve. When air is
compressed to 0.8MPa, air source enters in pressure-swing adsorption tower for separation after
being purified through dry and oil-water separation process (filter). Oxygen molecules are
diffused and adsorbed in carbon molecular sieve under pressure. Non-adsorbed nitrogen
is discharged from outlet of adsorption tower. Oxygen is desorbed, discharged and purged
in adsorption tower under depressurization. Moreover, adsorbent can be recycled.
Nitrogen Generating Equipment Application:
1)Food preservation by filling in nitrogen, agitation of beverages.
2)Nitrogen protection and filling of injection solution,transfusion and oral liquid in pharmacy industry
3)Chemical and new material industries: chemical ,urethane elastic fiber, rubber, plastic, tyre,
polyurethane, biological technology, intermediate , etc.
4) Electronic industry: peak welding, circumfluence welding, piezoelectricity, electronic porcelain,
electronic copper tape, battery, electronic alloy material , etc.
Nitrogen Generating Equipment Main Technical Parameters :
Nitrogen Capacity/Flow rate: 3-3000Nm³/h
Nitrogen Purity: 95%-99.9995% (95%, 97%, 98%, 99%, 99.5%, 99.9%, 99.99%, 99.999%, 99.9995%)
Nitrogen Generating Equipment Specifications:
|
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
||||
