Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou,China |
| Brand Name: | PN |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | SINCE-GAS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Normal exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets/year |
| Name: | Nitrogen Membrane Unit | Usage: | Chemistry Industry |
|---|---|---|---|
| Operate Pressure: | 0.1-0.8 Mpa | Dew Point: | -40 ℃ |
| Other Name: | Membrane Type Nitrogen Generator | State: | Fully Automatic |
| Highlight: | Nitrogen Membrane Unit,Membrane Type Nitrogen Generator,Chemistry Industry Nitrogen Membrane Unit |
||

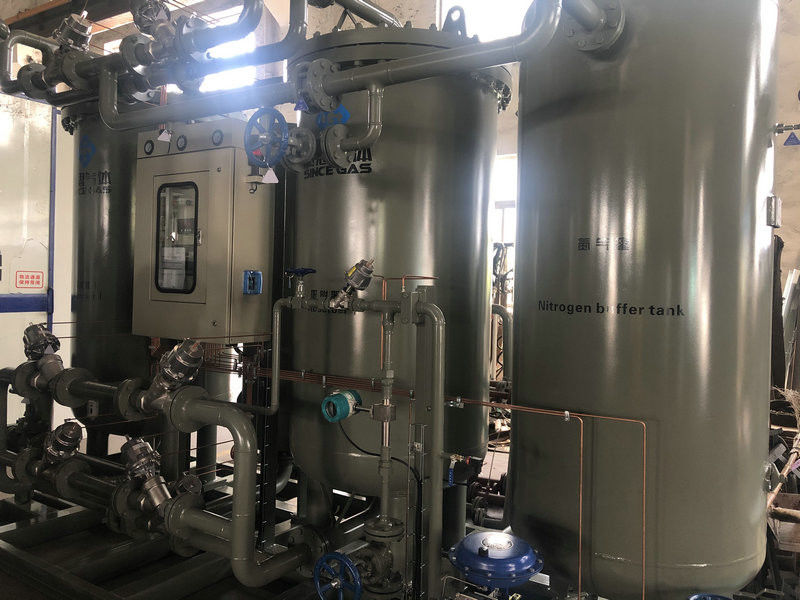

Chemistry Industry Nitrogen Membrane Unit / Membrane Type Nitrogen Generator
Nitrogen Membrane Unit Applications
- Food packaging (cheese, salami, coffee, dried fruit, herbs, fresh pasta, ready meals, sandwiches,etc. ..)
- Bottling wine, oil, water, vinegar
- Fruit and vegetable storage and packing material
- Medical industry
- Chemistry industry
- Electric & Electronic industry
- Petro-gas & Oil field
- Chemicals & Petro-chemicals, Coal-mine, Metallurgy,
- Pharmacy, SMT, Fire-resistance, lab, Air diving, and so on
PSA Nitrogen Generator System is used worldwide.
Nitrogen Membrane Unit Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Nitrogen Membrane Unit Technical characteristics:
Low energy consumption,less cost,strong adaptability,rapid nitrogen production and adjustable purity.
Perfect technique process design and optimal using effect.
Modular structure design and saving of floor space.
Convenient operation,stable performance, high automation and unattended operation.
Reasonable inner structure,uniform distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.
During the last 10 years,about 98% old customers firmly choose SINCE
Why they always choose SINCE?
Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom
company who got ,TS (Manufacture License of special equipment)
CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen
generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
