| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Material: | Carbon Steel/Stainless Steel | Certificates: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew Point: | -70 ℃ | Operate Power: | 1 KW |
| Application: | CE Approved High Purity PSA Nitrogen Generator For Tire Filling/tire Production Line | ||
| Highlight: | sa nitrogen plant,psa nitrogen generation system,CE Approved PSA Nitrogen Generator |
||

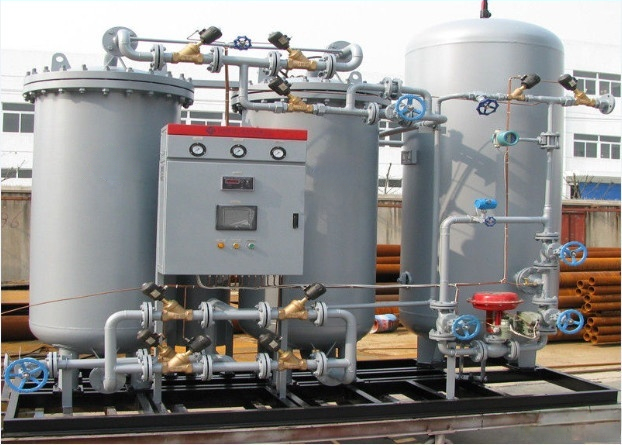

CE approved PSA Nitrogen Generator Equipment for Tire Production Line
CE approved High purity PSA nitrogen generator for tire filling / tire production line
PSA nitrogen generator
1) N2 Purity: 99-99.9995%
2) N2 Flow: 3-3000Nm3/h
3) N2 Pressure: 1-8 bar
4) SIMENS PLC Controller
Working Principle:
Under certain temperature,the residual oxygen in the low-purity nitrogen and the carbon provided by carbon catalytic generate CO2 after nitridation of C+O2=CO2.After removing the CO2 by PSA technique and further denitrification ,high-purity nitrogen is produced.
Technical Features
There is no H2 in it and it is suitable for use in the occasions which have strict requirement for H2 and
O2.
High-efficiency and energy-saving technique makes the energy consumption of the system reduce greatly.
The deaerator adopts two-tower structure and adding and replacing of carbon catalytic agent can
be done under non-stopping state.
Automatic venting device with national patented technology ensure s the quality of the produced nitrogen.
The key parts in the system adopt the famous brand,which is the effective guarantee of the equipment quality.
It ha s functions of diagnosis,alarming and automatic troubleshooting for several failures.
Technical Indexes:
Nitrogen Output:10~5000Nm³ / h
Nitrogen Purity : ≥ 99.9995%
Oxygen Content: ≤ 5 ppm
Carbon Dioxide Content: ≤ 1 ppm
Dew Point: ≤ -70 ºC
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Technical Features:
1.High purity.
The 99.9995% nitrogen gas is produced in one-time procedure without
purification devices.
2.Excellent energy-saving
Unique distribution of gas flow, advanced energy-saving technology,
excellent molecular sieve make HUILIN Nitrogen Generator energy-saving
achieve 10~20% than other do.
3.steady-going, long life-span
Unique clamping cylinder technology effectively extending the life of
molecular sieve.
4.High degree of automation
The automatic control technology could switch machines with one key,
and have remote and centralized operation with nobody control.
Which nitrogen generator model should I choose?
Different parameters are essential for your choice of generator.
• How big is your consumption?
• Is your consumption variable?
• Which pressure is required?
• What purity is required?
• do you already have a compressed air system?
