Suzhou Since Gas System Co.,Ltd
Provide reliable service&products for gas field,push industry civilization progress!
 |
| Place of Origin: | Suzhou, China |
| Brand Name: | SINCE |
| Certification: | CE,ABS,CCS,BV,DNV,ASME,GOST, |
| Model Number: | PN |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Exported wooden case |
| Delivery Time: | 2 months after received down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets /per year |
| Material: | Carbon Steel/Stainless Steel | Certificates: | BV,,CCS,ISO,TS |
|---|---|---|---|
| Capaicty: | 5-5000 Nm3/h | Purity: | 95%-99.9995% |
| Dew Point: | -70 ℃ | Operate Power: | 1 KW |
| Application: | Carbon Fibre Industry | ||
| Highlight: | psa nitrogen generation system,psa nitrogen gas generator,Carbon Fibre PSA Nitrogen Generator |
||

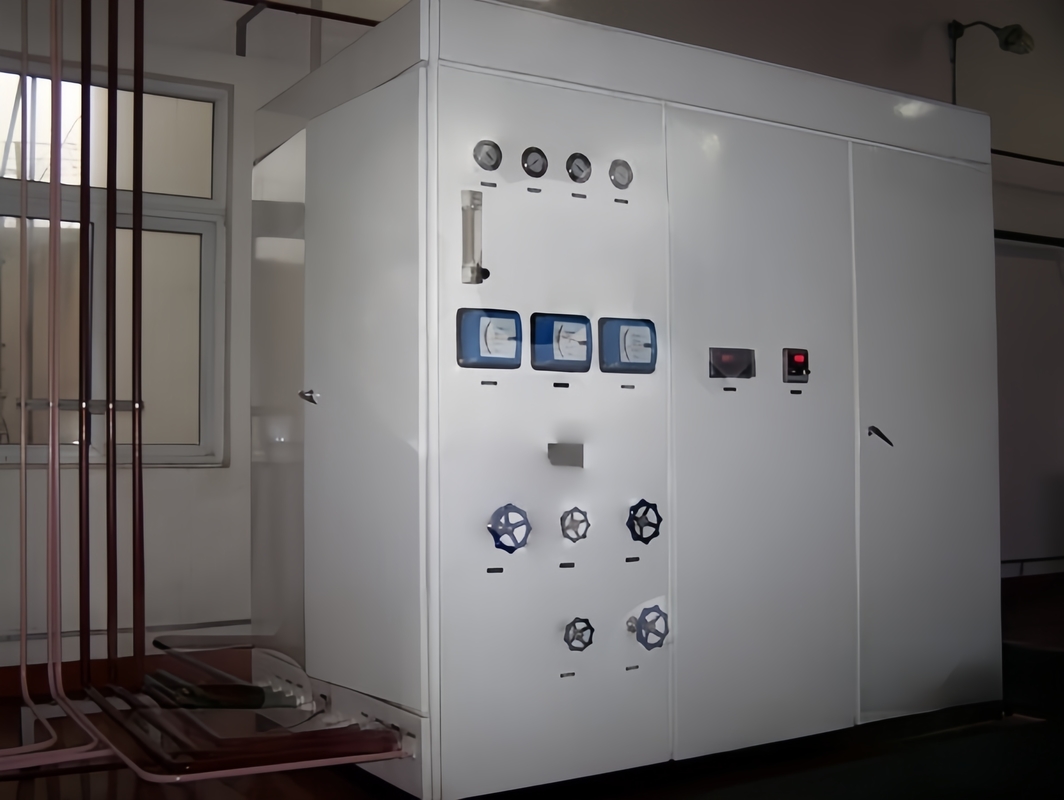

Low Compressed High Tech Carbon Fibre Industrial Production Of Nitrogen Gas
PSA nitrogen generator for wire Industry:
1). Purity:95%-99.9995%
2) .Capacity:5~3000Mm3/h
3). Outlet Pressure:0.1-0.7Mpa(Adjustable)
4). Low compressed air consumption
5). Durable components
Working Principle:
PSA nitrogen generating equipment use the high quality carbon molecular sieve as adsorbent,
and utilize PSA principle, acquiring nitrogen gas from compressed air directly.
1. Under the pressure of certain. Because of kinetic effect, the spread rate of oxygen and
nitrogen on carbon molecular sieve has big differenceses. As a great deal of oxygen molecules
is adsorbed by carbon molecular sieve, nitrogen molecules enrichs at gaseous phase, so
nitrogen and oxygen get separated.
2. As the adsorption capacity of carbon molecular sieve on oxygen changed with the pressure,
different pressures have obvious difference, when reduce pressure, it can desorb the oxygen
molecule adsorption on carbon molecular sieve, making carbon molecular sieve regeneration,
ike this make it recycling use.
3. Choose two adsorption tower processes, one tower adsorption then produce nitrogen,
the other desorption regeneration, the two circulation alternate, continuously output high quality
of nitrogen.
Technical Indexes:
Nitrogen Output:5~3000Nm³ / h
Nitrogen Purity : ≥ 99.9995%
Oxygen Content: ≤ 5 ppm
Carbon Dioxide Content: ≤ 1 ppm
Dew Point: ≤ -70 ºC
Specifications:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
PN-3-39 PN-5-29 PN-5-295 PN-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
PN-5-49 PN-8-39 PN-12-295 PN-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
PN-10-49 PN-15-39 PN-25-295 PN-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
PN-15-49 PN-22-39 PN-35-295 PN-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
PN-20-49 PN-30-39 PN-50-295 PN-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
PN-30-49 PN-45-39 PN-75-295 PN-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
PN-40-49 PN-60-39 PN-100-295 PN-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
PN-50-49 PN-70-39 PN-120-295 PN-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
PN-60-49 PN-90-39 PN-160-295 PN-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
PN-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
PN-120-39 PN-200-295 PN-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
PN-100-49 PN-140-39 PN-250-295 PN-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly |
|||||
Features
1. Unique molecular sieve protective measures so as to lengthen the service life of carbon molecular sieve.
2. Self-reliance type cylinder pressure device can avoid high-speed airflow rushed out, it can not cause of
molecular sieve pulverization phenomenon. Equipped with the limit settlement alarm system, when it reach the
floor level of journey, the equipment will sound and light alarm by itself.
3. Configureed DCS remote control system interface, it can monitor the system operate condition through the
computer.
4. Intelligent interlocking nitrogen vent device can guarantee the quality of nitrogen.
5. Perfect process design and excellent energy conservation characteristics reduce the cost of gas.
6. Reasonable structure design make the transportation, sling and installation very convenient.
7. Selecting the safe and reliable control components, so the equipment can run stable and reliable, it also
has various fault alarm.
8. It operates easily, runs stably, and has a high degree of automation, can realize no one operates.
